Description:

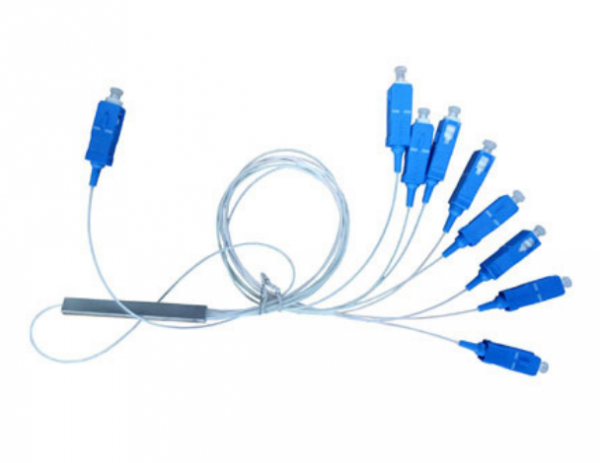

1/8 8 channel optical 1*8 fiber optic without connector 1x8 steel tube sc apc gpon plc splitter 1:8.

The Micro Type PLC Splitter provides a high precise Micro type PLC splitter for the construction of optical network. Low requirements of placing position and environment, compact micro type design. It is especially suitable for tiny room installation and can be easily placed into different types of terminal boxes and distribution boxes, in favor of splicing and stay in tray without additional space reservation.

It can be easily applied in FTTx construction, optical network construction, CATV networks and etc.





Features:



·              Low insertion loss,high return loss

·              Excellent Temperature stability

·              Good repeatability and exchangeability

·              Excellent mechanical endurance

·              Strict curing time and temperature control

·              Strict testing standards and methods for quality

·              Environment protection (ROHS Compliance)

·              The fiber optical patch cord can be customized according to customers'specific equirements (Customized Connector/Length/package...)

·              100% NEW raw material and well quality control ensure the best life time

Parameter	Unit	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Wavelength	nm	1260-1650
Insertion Loss	dB	≤4.2	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5	≤24
PDL	dB	≤0.25	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Uniformity	dB	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss	dB	≥50
Directivity	dB	≥55
Temperature Range	°C	(-40~+75)
Storage Temperature	°C	(-40~+85)
NOTE:The above parameter is for splitter with connector.
