Description:

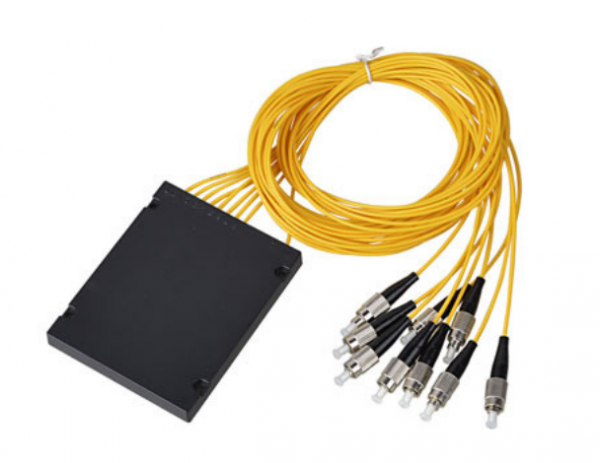

FC Connector PLC Cassette Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.





Features:



·              Low Insertion loss

·              Low PDL

·              Compact Design

·              Good channel-to-channel uniformity

·              Wide Operating Wavelength: From 1260nm to 1650nm

·              Wide Operating Temperature: From -40℃to 85℃

·              High Reliability and Stability

Specifications:

Parameter	Unit	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Wavelength	nm	1260-1650
Insertion Loss	dB	≤4.2	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5	≤24
PDL	dB	≤0.25	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Uniformity	dB	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss	dB	≥50
Directivity	dB	≥55
Temperature Range	°C	(-40~+75)
Storage Temperature	°C	(-40~+85)
NOTE:The above parameter is for splitter with connector.
