Description:

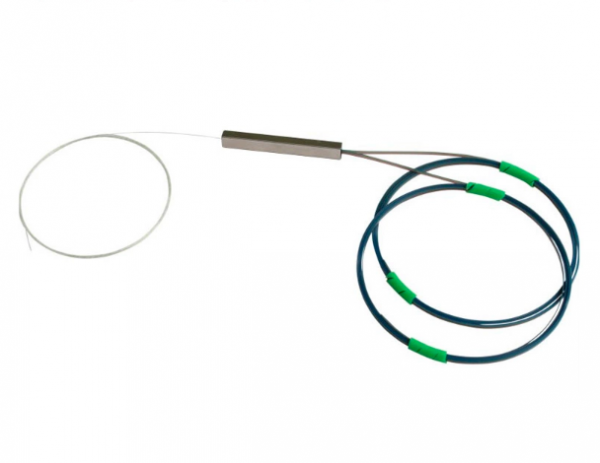

1*2 Splitter, 12 Standard Color,SM fiber,fiber optic cable OD:0.9mm pigtail,1m length, with SC/APC connector.

The Bare Fiber PLC Splitters provide a high precise PLC splitter for the construction of optical network Low requirements of placing position and environment, compact micro type design. It is especially suitable for tiny room installation and can be easily placed into different types of terminal boxes and distribution boxes, in favor of splicing and staying in tray without additional space reservation.





Features:

Applied in:FTTH, Monitoring, CATV System, Network Protection, Access/PON Distribution

Test Wavelength: 1310-1550 nm

Required Value:P Grade

Test can be performed on any channel

Return Loss

- Test Wavelength: 1310-1550 nm

- Required Value:>55dB

- Test can be performed on any channel

Directivity

- Test wavelength: 1310-1550 nm

- Required Value:>55 dB

On Dependent Loss-PDL

- Test Wavelength: 1310-1550 nm

- Required Value:< 0.2 dB

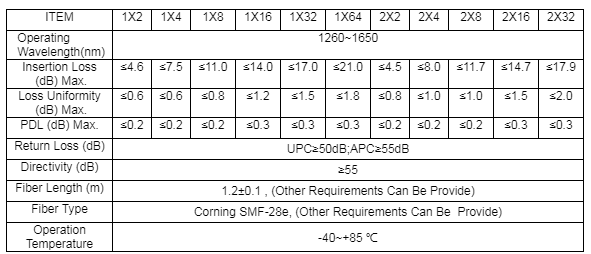

Specifications:
