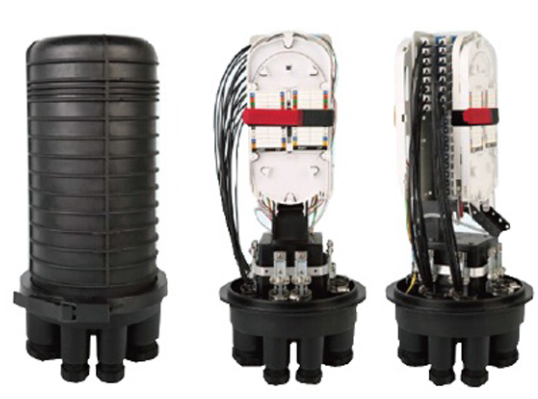

Dome Type Fiber Optic Splice & Splitter Closure

Features:

· Repeatable use

· High aging resistance

Applications:

· Aerial, direct-buried, wall-mounting and pipeline

· Outdoor cable

Specifications:

Part Number

F2H-FOSC-SBM-L5S24-2VG

F2H-FOSC-SDM-M5S24-5VG

Type

dome

Sealing Structure

mechanical sealing

Splice Capacity
per Tray

24 fibers

12/24 fibers

Max. No. of Trays

2pcs

5pcs

Max. Capacity

48 fibers

120 fibers

No. Of Cable
Ports

5 ports

Max. Cable
Diameter

10~17.5mm

10~22mm

Max. Adapter
Quantity

18pcs

34pcs

Applicable
Splitter

1pc of 1*16 or 2*16 splitter

1pc of 1*32 or 2*32 splitter

Dimension (D*H)

230*435mm

260*478mm

Net Weight

4.8kg

6.2kg

Working
Temperature

-40℃~65℃
