Description:

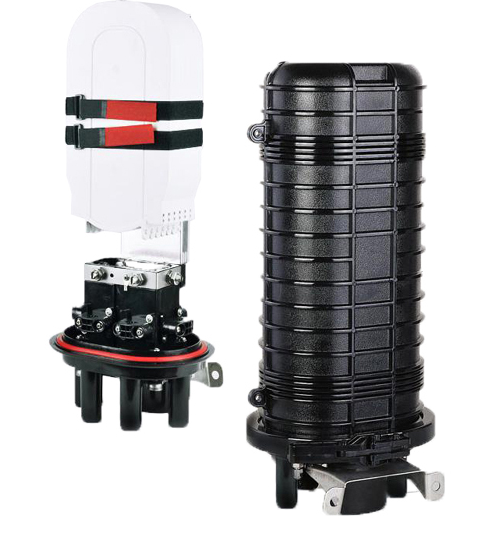

Fiber optic closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling or buried underground are all available. Generally, closures have two types to face different situations: Cap (Vertical) Type and Half (Horizontal) type. The Cap type closure is also called Vertical closure. The input and output ports are at the bottom of the closure.

This closure type is more suitable for the application on accessing layer. The Half type closure is also called Horizontal closure. The input and output are on the both sides. This closure is more suitable for backbone application.

Tongda provides various shapes closure of both type. All the closures we offered are fully mechanical sealing structure which ensure a great sealing performance. High quality ABS material also ensure the durability no matter the closure is in air, in pipeline or buried underground.
Fiber Optic Splice Closure:

A fiber optic splice closure is only for protecting interconnection of fibers. It does not combine the ability of optical splitting. Generally, the splicing tray offered as accessories has two types: single side 12 cores type and double sides 24 cores.





Features:

·          Vertical type design

·          Easy to assemble

·          Both double sides splicing tray are allowed

·          High quality ABS body material ensure the durability

·          Suitable for 5mm~18mm cables

·          Aerial, underground, pipeline, hand-holes assembling are available

·          Adapt to the ambient temperature from -40℃~65℃

·          All accessories can be customized

Model	F2H-FOSC-BDH-A4S24-4VG	F2H-FOSC-BDH-B5S24-4VG	F2H-FOSC-BDH-C5S48-6VG
Type	Cap type (Vertical)	Cap type (Vertical)	Cap type (Vertical)
Outside dimension	440×190mm	420×190mm	490×220mm
Weight (excluding outside box)	2570~2820g	2370~2620g	3070~3820g
Number of inlet/outlet ports	4 pieces	5 pieces	5 pieces
Diameter of fiber cable	5~25mm	5~25mm	5~35mm
Capacity of FOSC	Bunchy: 24~96 (cores)	Bunchy: 12~96 (cores)	Bunchy: 12~288 (cores)
Body material	ABS	ABS	ABS
Assembling method	Aerial, Pipeline, Underground, hand-holes	Aerial, Pipeline, Underground, hand-holes	Aerial, Pipeline, Underground, hand-holes
Temperature	-40℃~65℃	-40℃~65℃	-40℃~65℃
Standard accessories	1*FOSC cover, 1*Fiber optic splice tray (FOST), n*Fiber holding tray, 1*Base,1*Plastic hoop, 1*Seal fitting	1*FOSC cover, 1*Fiber optic splice tray (FOST), n*Fiber holding tray, 1*Base,1*Plastic hoop, 1*Seal fitting	1*FOSC cover, 1*Fiber optic splice tray (FOST), n*Fiber holding tray, 1*Base,1*Plastic hoop, 1*Seal fitting
Option	Pressure testing valve and Earthing deriving device (kit)

Model	F2H-FOSC-BDH-D7S24-10VG	F2H-FOSC-BDM-A4S24-4VG	F2H-FOSC-BDM-B4S24-4VG
Type	Cap type (Vertical)	Cap type (Vertical)	Cap type (Vertical)
Outside dimension	450×220mm	430×190mm	310×190mm
Weight (excluding outside box)	2870~3620g	2670~2900g	2100~2380g
Number of inlet/outlet ports	7 pieces	4 pieces	4 pieces
Diameter of fiber cable	5~35mm	5~18mm	5~17mm
Capacity of FOSC	Bunchy: 12~240 (cores)	Bunchy: 12~96 (cores)	Bunchy: 12~48 (cores)
Body material	ABS	ABS	ABS
Assembling method	Aerial, Pipeline, Underground, hand-holes	Aerial, Pipeline, Underground, hand-holes	Aerial, Pipeline, Underground, hand-holes
Temperature	-40℃~65℃	-40℃~65℃	-40℃~65℃
Standard accessories	1*FOSC cover, 1*Fiber optic splice tray (FOST), n*Fiber holding tray, 1*Base,1*Plastic hoop, 1*Seal fitting	1*FOSC cover, 1*Fiber optic splice tray (FOST), n*Fiber holding tray, 1*Base,1*Plastic hoop, 1*Seal fitting	1*FOSC cover, 1*Fiber optic splice tray (FOST), n*Fiber holding tray, 1*Base,1*Plastic hoop, 1*Seal fitting
Option	Pressure testing valve and Earthing deriving device (kit)
