Description:

Fiber Optic Splice Closure, also named Fiber Optic Joint Enclosure, is an essential passive component for fiber optic cable management in fiber optic network of backbone, MAN and access network. Fiber Optic Splice Closure is widely used to protect optical fiber splices, store slack fiber optic cables, distribute fiber optic cables, etc. In straight through and branching applications either in the outside plant or indoor buildings.

Fiber Optic Splice Closure can be installed in aerial, pole mounting, wall mounting, direct buried and duct mounting.

According to the shapes of Fiber Optic Splice Closure, there are inline Fiber Optic Splice Closure (horizontal Fiber Optic Splice Closure) and dome Fiber Optic Splice Closure (vertical Fiber Optic Splice Closure).

According to the functions of Fiber Optic Splice Closure, there are standard Fiber Optic Splice Closure for fiber splicing and FTTH Fiber Optic Splice Closure for housing fiber optic splitters for FTTH Passive Optical Network.

Specifications:

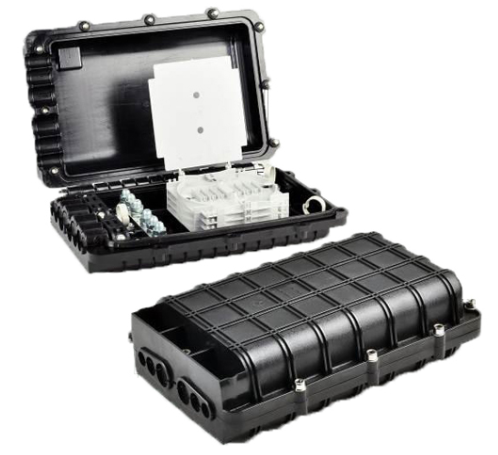

Model	LW-FOSC-IM301-6
Type	Inline type
Number of Inlet/Outlet ports	6 ports
Cable Diameter	2 ports×13mm, 2 ports×16mm, 2 ports×20mm
Maximum Capacity	Bunchy: 96 fibers; Ribbon: 144 fiber
Capacity per Splice Tray	Bunchy: single layer: 12 fibers; dual layers: 24 fibers; Ribbon: standard: 3pcs; max.: 6pcs
Quantity of Splice Tray	4pcs
Body Material	PC
Sealing Material	Thermoplastic rubber
Assembling method	Aerial, direct buried, pipelined, wall mounting, manhole
Dimension	320(L)×210(W)×85(H)mm
Net Weight	2.65~2.8KG
Temperature	-40℃~65℃
