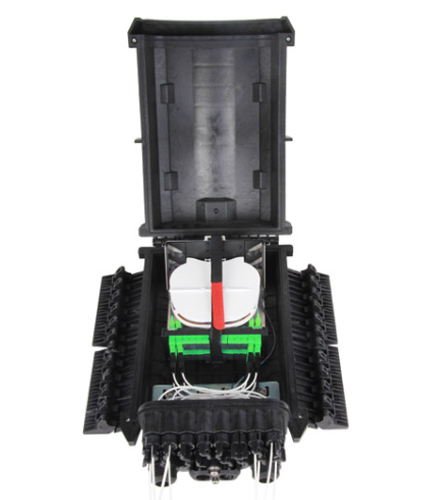

Drop Cable Type Fiber Optical Splitter Closure




Description:

FTTH Drop Cable Type Fiber Optic Splice & Splitter Closure features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.






Features:
  1. Dis-mountable adaptor panel
  2. Support midspan termination
  3. Easy operation and installation
  4. Rotatable and dis-mountable splice tray for easy splicing





Applications:
  1. Wall mounting & pole mounting installation
  2. Suitable for 2*3mm Indoor FTTH Drop Cable and Outdoor Figure 8 FTTH Drop Cable (standard) or 6mm cable (optional)






Specifications:

Model

F2H-JCD-24-I2

F2H-JCD-16-I4

F2H-JCD-24-I4

Adapter

24pcs of SC

16pcs of SC

24pcs of SC

Cable Ports

1 uncut port

1 uncut port

2 round ports

1 uncut port

2 round ports

Applicable Cable Diameter

10~17.5mm

10~17.5mm

8~17.5mm

10~17.5mm

8~17.5mm

Drop Cable Ports

24 ports

16 ports

24 ports

Applicable Cable Diameter

2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable, 6mm cable (optional)

Dimension (mm)

385*245*130

385*245*130

385*245*155

Material

modified polymer plastic

Sealing Structure

mechanical sealing

Color

black

Maximum Splicing Capacity

48 fibers (4 trays, 12 fibers/tray)

Applicable Splitter

1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters

Sealing

IP68

Impact Test

IK10

Pull Force

100N

Midspan Entry

yes

Storage (Tube/Micro Cable)

yes

Net Weight

4kg

Gross Weight

5kg

Packing

540*410*375mm (4pcs per carton)
