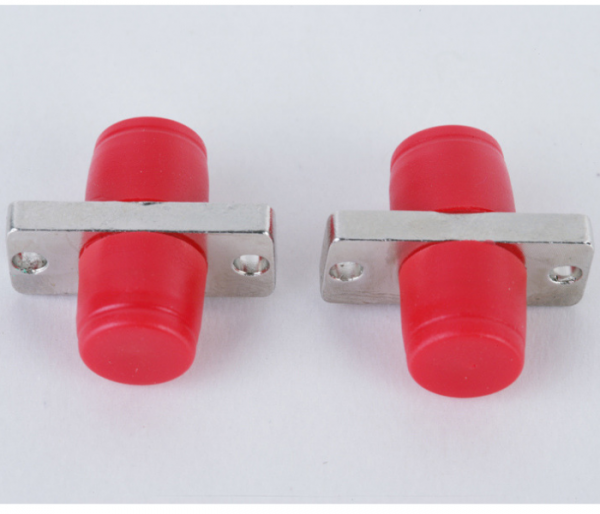

Fiber Optic Adaptors

Fiber Optic Adaptors

Description:

Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC style fiber optic adapters for both multimode and single-mode fiber applications.




Features:

·            Good Repetition

·            Good Exchange

·            High thermal stability

·            Low Insertion Loss

·            High Return Loss

·            High-precision mechanical


·            Installation is simple

·            High environmental stability




Specifications:

Parameter
Unit
LC, SC, FC, ST
SM
MM
PC
UPC
APC
PC
Insertion Loss (Typical)
dB
≤0.2
≤0.2
≤0.2
≤0.2
Return Loss
dB
≥45
≥50
≥60
≥30
Exchangeability
dB
≤0.2
Repeatability
dB
≤0.2
Durability
Time
>1000
Operating Temperature
°C
-40~75
Storage Temperature
°C
-45~85
