Description:

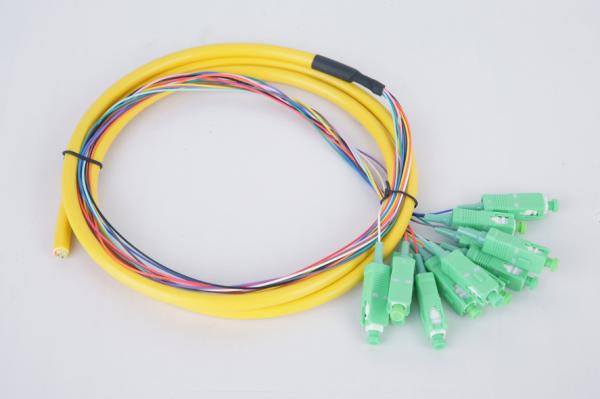

Pigtails are used for splice applications when terminating outside plant cable. Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged.

Features:



·              Ceramic Ferrule

·              High return loss

·              Low insertion loss

·              Good repeatability and and exchangeability

·              Excellent Polished and 100% tested

·              Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard

Type	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB  (+25+65 93 R.H.100 hours)
