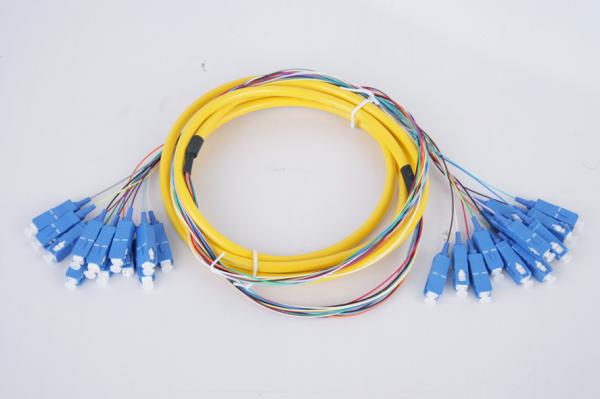

Fiber Optic Patch Cord is important of optical network. They have same or different connectors that are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features:
· Ceramic Ferrule
· High return loss
· Low insertion loss
· Good repeatability and and exchangeability
· Excellent Polished and 100% tested
· Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard
Specifications:
|
Type |
SM(Single Mode) |
MM(Multi Mode) |
|||
|
Fiber Cable Type |
G652/G655/G657 |
OM1 |
OM2/OM3/OM4 |
||
|
Fiber Diameter (um) |
9/125 |
62.5/125 |
50/125 |
||
|
Cable OD (mm) |
0.9/1.6/1.8/2.0/2.4/3.0 |
||||
|
Endface Type |
PC |
UPC |
APC |
UPC |
UPC |
|
Typical Insertion Loss (dB) |
<0.2 |
<0.15 |
<0.2 |
<0.1 |
<0.1 |
|
Return Loss (dB) |
>45 |
>50 |
>60 |
/ |
|
|
Insert-pull Test (dB) |
<0.2 |
<0.3 |
<0.15 |
||
|
Interchangeability (dB) |
<0.1 |
<0.15 |
<0.1 |
||
|
Anti-tensile Force (N) |
>70 |
||||
|
Temperature Range |
-40~+80 |
||||
|
|
|
