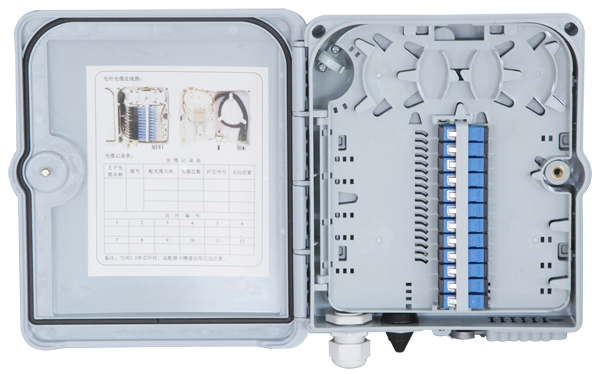

Optical Distribution Box-12 core

Optical Distribution Box-12 core

Description:

12 Core Outdoor Fiber Optic Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.





Features:

·              Total enclosed structure.

·              Material: PC+ABS, wet-proof, water-proof, dust-proof and anti-aging, protection level up to IP65.

·              Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc all in one.

·              Cables, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adapter installation, easy maintenance.

·              Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

·              Box can be installed by the way of wall-mounted,suitable for both indoor and outdoor uses.

·              Can accommodate 1x8 Cassette PLC splitter or 12 SC/PC adaptors. Rainfall resistant, outdoor using.





Specification:

Product name
12 Core Fiber Optic Distribution box
Appearance size (mm)
Box: 235×200×60(PC+ABS)
Installation Method
Wall/Pole Mounted
Applicable Environment
Outdoor/Indoor
Protection Grade
IP65
Door Opening
Single Front Door Opening
Material
PC+ABS

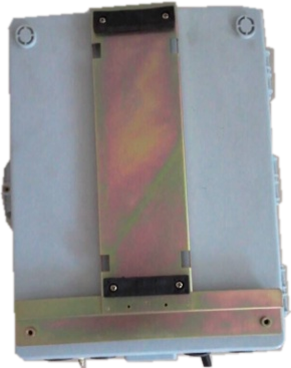

TD-FP16B pole mounting bracket
TD-FP16B pole mounting bracket

TD-FP16B pole mounting bracket

TD-FP32B pole mounting bracket
TD-FP32B pole mounting bracket

TD-FP32B pole mounting bracket

TD-FS16E/TD-FS32E pole mounting bracket
TD-FS16E/TD-FS32E pole mounting bracket

TD-FS16E/TD-FS32E pole mounting bracket

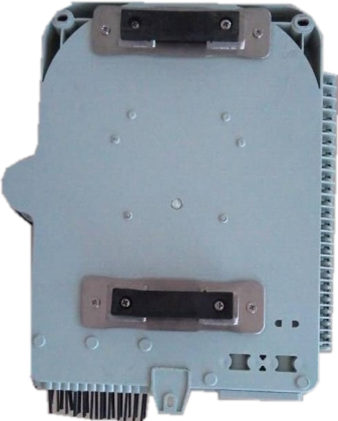

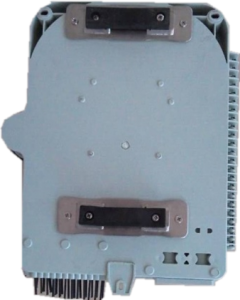

TD-FP12A/ TD-FP24B pole mounting component
TD-FP12A/ TD-FP24B pole mounting component

TD-FP12A/ TD-FP24B pole mounting component

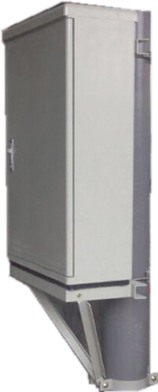

96/144 core TDG-G144A/ TDG-G96A pole mounting bracket
96/144 core TDG-G144A/ TDG-G96A pole mounting bracket

96/144 core TDG-G144A/ TDG-G96A pole mounting bracket

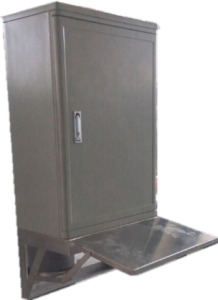

288 coreTDG-G288A / TDG-G288B/ TDG-G288C pole mounting bracket
288 coreTDG-G288A / TDG-G288B/ TDG-G288C pole mounting bracket

288 coreTDG-G288A / TDG-G288B/ TDG-G288C pole mounting bracket
