Description:

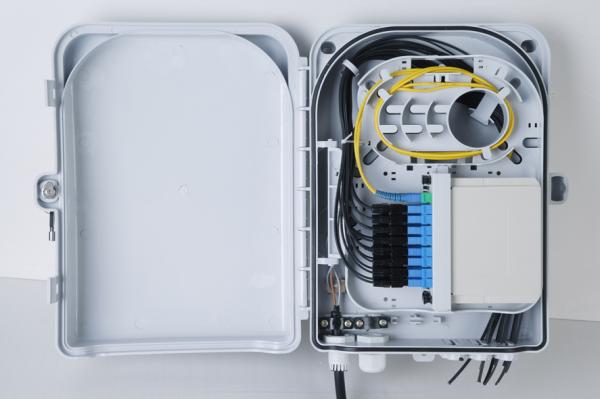

24 Core Outdoor Fiber Optic Distribution Box is applicable for the FTTx project and provide mechanical protection for fiber management system that includes the functions of splicing, patching and passive component integration.





Features:

·            Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

·            Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution… etc. all in one.

·            Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.

·            Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

·            2*8 Cassette PLC Splitter or 24 SC/PC adaptors can be installed as an option.



Specifications:

Product name	24 Core Fiber Optic Distribution box
Appearance size (mm)	Box: PC+ABS: 340×270×95(A/B) Stainless Steel: 250×150×40(A)
Installation Method	Wall/Pole Mounted
Applicable Environment	outdoor
Protection Grade	IP65
Door Opening	Single Front Door Opening
Material	PC+ABS/Stainless Steel
