Description:

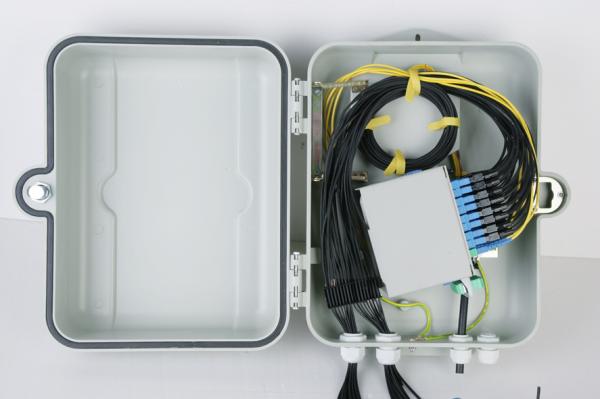

32 Core Fiber Optic Distribution Box, applicable to the user access point in FTTx system, mainly used to complete the optical cable termination in residential quarters or buildings, and access to the end users as access cable after light splitting.





Features:

·              Water-proof design with IP-65 Protection level.

·              Integrated with splice cassette and cable management rods.

·              Manage fibers in a reasonable fiber radius condition.

·              Easy to maintain and extend the capacity.

·              Fiber bending radius control more than 40mm.

·              Suitable for the fusion splice or mechanical splice.

·              4*8 Cassette PLC Splitter or 48 SC/PC adaptors can be installed as an option.

·              Efficient cable management.

·              24 ports cable entrance for drop cable.

Specifications:

Product name	32 Core Fiber Optic Distribution box
Appearance size (mm)	Box: SMC:420×350×170(E) or 448.5×358×129(F) PC+ABS: 420×320×125(A) Stainless Steel: 460×340×120(A) or 600×350×130(B)
Installation Method	Wall/Pole Mounted
Applicable Environment	outdoor
Protection Grade	IP65
Door Opening	Single Front Door Opening
Material	SMC/PC+ABS/Stainless Steel
