Description:

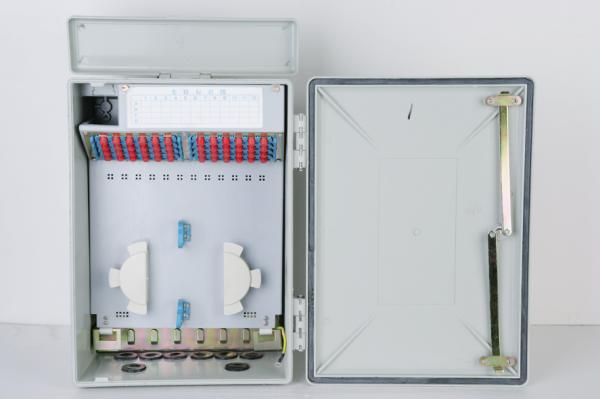

48 Core fiber optic distribution box is suitable for the terminal in fiber access network, with a function of light splitting, used for the connecting and wiring of fiber, and welding and wiring splitting structure are adopted.

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides soild protection and management for the FTTx network building.

Features:

·              The two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.

·              Optical Splitter module drawer modular design with a high degree of interchangeability.

·              Up to 16 pcs of drop cable.

·              2 ports for outdoor cable in.

·              16 ports for drop cable or indoor cable out.

·              Can accommodate 1x4 and 1x8 1x16 PLC splitter (or 2x4 or 2x8).

·              Wall mounting and pole mounting application.

·              The maximum capacity is 48F.

·              The top has waterproof design, better performance on waterproof.
