Description:

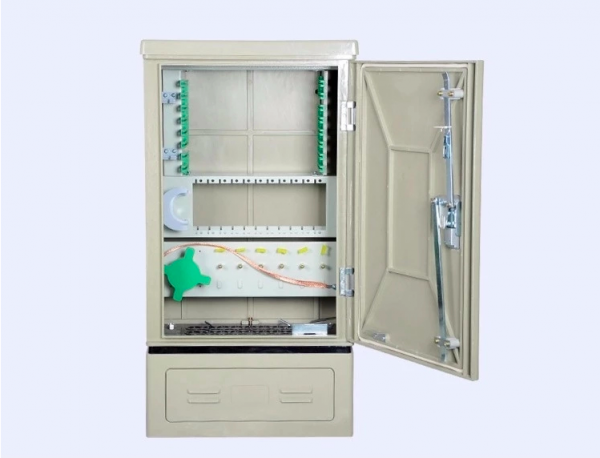

96 core Fiber Optic Cross Connection Cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access network. The cabinet is made by Material SMC and has large capacity which is suitable for the expansion of fiber optic cabinet. Fiber optic cross cabinet is used for connecting trunk and distribution optical fiber cable. It carries out the function of splicing, storage and distribution.



Features:

·              SMC material used ensures the body strong and light.

·              Embedded the wall design for outdoor uses

·              Protection Level: IP65

·              Easy installations: Ready for wall mount – installation kits provided

·              Adapter slots used – No screws and tools needed for installing adapters

·              Ready for splitters: designed space for adding splitters

·              Space saving! Double-layer design for easier installation and maintenances

·              MAX.tray:8 pcs(96 cores)

·              Lower layer for splitters and over length fiber storage

·              Upper layer for splicing, cross-connecting and fiber distribution

·              Accommodates both cable glands as well as tie-wraps

·              Lock provided for extra security

Specifications:

Product name	96 Cores Double-Sides Fiber Optic SMC Cross-Connection Cabinet
Appearance size (mm)	Cabinet: 710×550×310; base: 230×550×310
Housing Material	SMC
Splice and Distribution Tray Capacity	12 pieces of SC, FC or ST adaptors (12 fibers); 12 pieces of duplex LC adaptors (24 fibers);
Splice and Distribution Tray Quantity	12 pieces max.
Applicable Adaptor	SC, FC (duplex LC or ST is optional)
Adaptor Quantity	96 pieces max.
Direct Splice Capacity	48 fibers, 12 fibers/tray (can be specified)
Installation Method	Floor standing (wall/pole mount is optional)
Applicable Environment	outdoor
Protection Grade	IP65
Color	gray
