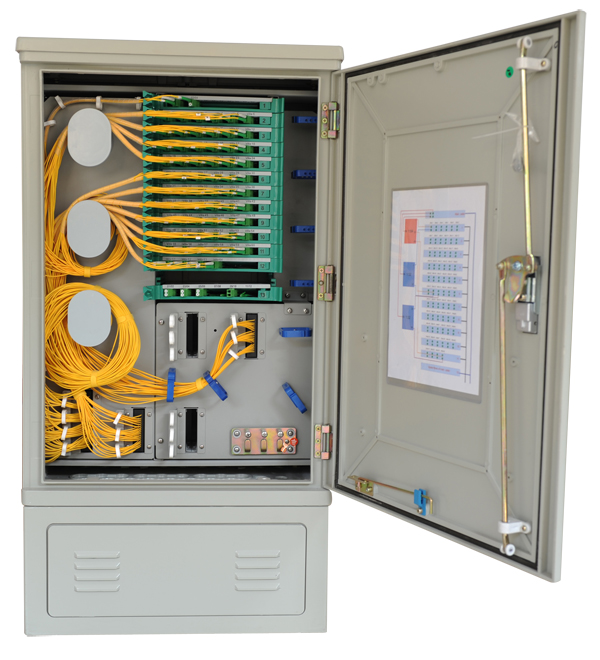

Optical Distribution Cabinet-144 core

Optical Distribution Cabinet-144 core

Description:

144 core Fiber Optic Cross Connection Cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access network. The cabinet is made by Material SMC and has large capacity which is suitable for the expansion of fiber optic cabinet. Fiber optic cross cabinet is used for connecting trunk and distribution optical fiber cable. It carries out the function of splicing, storage and distribution.





Features:

·              Maximum accommodate 48 pieces of 1*8/1*N Card PLC splitter

·              Max. 6 pieces of 12 cores fiber pigtail tray with adapter for backbone cable

·              Max. 48 pieces of 12 cores fiber pigtail tray without adapter for distribution cable

·              Modular design, easy installation and removal

·              Independent storage and splice area, provides flexible fiber cable management

·              Have enough place for 2.0mm 3M pigtail

·              Reliable sealing and locking make it waterproof and rust-proof ,mainly used outdoor

·              Optional of SMC, stainless steel or cold-rolled steel materials, with surface powder coating

·              Preset fiber pigtails installed for rapid deployment

·              water-proof and damp proof.Single/double door

·              Reliable cable fixation device and grounding device


Specifications:

Product name

144 Cores Double-Sides Fiber Optic SMC Cross-Connection Cabinet

Appearance size (mm)

Cabinet: 800×555×310; base: 235×550×310

Housing Material

SMC

Splice and Distribution Tray Capacity

12 pieces of SC, FC or ST adaptors (12 fibers);
12 pieces of duplex LC adaptors (24 fibers);

Splice and Distribution Tray Quantity

12 pieces max.

Applicable Adaptor

SC, FC (duplex LC or ST is optional)

Adaptor Quantity

144 pieces max.

Direct Splice Capacity

72 fibers, 12 fibers/tray (can be specified)

Installation Method

Ground mounted (wall/pole mount is optional)

Applicable Environment

outdoor

Protection Grade

IP65

Color

gray
