Description:

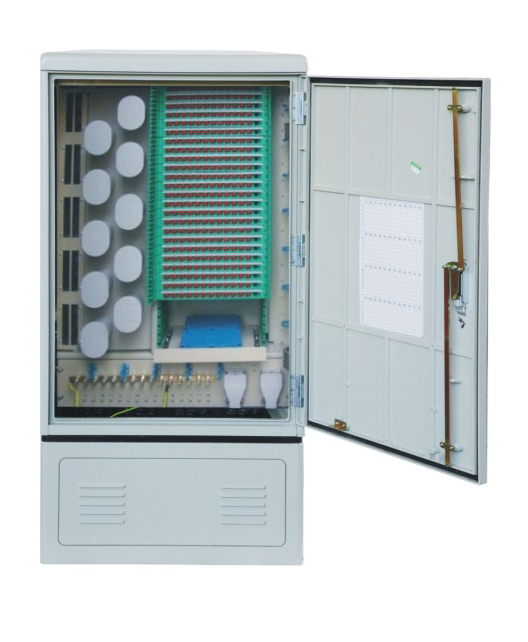

576 core Fiber Optic Cross Connection Cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access network. It is made by Material SMC and has large capacity which is suitable for the expansion of fiber optic cabinet.

The cabinet is used for connecting trunk and distribution optical fiber cable. It carries out the function of splicing, storage and distribution. It is mainly used in the CATV, telecommunication equipment room and network equipment room.

Features:

·              Excellent performance such as:water-proof,damp-proof,anti-erosion,anti-strike.

·              Able to withstand abrupt climate change and extreme environment.

·              Capacity can be flexibly customized as required.

·              Installation is quick and convenient .

·              Built-in direct splice unit is capable for providing direct connection function.

·              Perfect design of fiber wiring routing could facilitate management and maintenance of fibers

·              With secure and reliable fastening and grounding protection devices for the optic fiber

·              Applicable to strap-shaped and non-strap shaped fibers

·              Unique patent for the design of the door key,can never be easily broken.

·              With unique design of the adjust structure of temperature.

Specifications:

Product name	576 single-sided/double-sided Cores Fiber Optic SMC Cross-Connection Cabinet
Appearance size (mm)	ODC-SMC- TD-G576A: Cabinet: 1200×1460×360; Base: 350×1460×360 ODC-SMC- TD-G576B: Cabinet: 1200×750×620; Base: 350×750×620 ODC-SMC- TD-G576C: Cabinet: 1100×750×620; Base: 350×750×620 ODC-SMC- TD-G576D: Cabinet: 1100×750×540; Base: 350×750×540
Housing Material	SMC
Splice and Distribution Tray Capacity	12 pieces of SC, FC or ST adaptors (12 fibers); 12 pieces of duplex LC adaptors (24 fibers);
Splice and Distribution Tray Quantity	96 pieces max.
Applicable Adaptor	SC, FC (duplex LC or ST is optional)
Adaptor Quantity	576 pieces max.
Direct Splice Capacity	288 fibers, 24 fibers/tray (can be specified)
Installation Method	Floor standing (wall/pole mount is optional)
Applicable Environment	outdoor
Protection Grade	IP65
Color	gray
